Image-guided procedural VR trainer for clinicians and medical professionals

VIST® G7 and G7+ SIMULATOR

The VIST®G7 is the flagship and latest in image-guided interventional simulators for medical professionals. This simulator offers a wide range of training modules and utilizes Haptic Realism™ technology for unmatched force range and accuracy. It provides an ideal environment for procedural training, patient-specific simulation, and skills assessment. When combined with the VIST® Virtual Patient and leading angio systems, it offers the most realistic simulation for interventional procedures available.

In its top configuration (VIST® G7+), the system allows for simultaneous manipulation of up to five devices in parallel for advanced interventional techniques such as bifurcation stenting, balloon assisted coiling, and buddy wires.

Mentice VIST® G7 and G7+ provides

  • Evidence-based validity – face, construct and concurrent validity shown in published studies
  • High-fidelity simulation – optimal environment for proficiency-based training with advanced tactile and force feedback technology
  • Use of actual devices and equipment to enhance clinical realism training with the same devices used in clinical practice
  • The only simulation platform for realistic training of dual device techniques such as bifurcation stenting

Mentice VIST-C - Left Ventricular Ejection Fraction

Dr. Alan Bagnall performs a LV angiography to measure the left ventricular ejection fraction on a Mentice VIST-C simulator during the UKETS event in London

Technical Specification

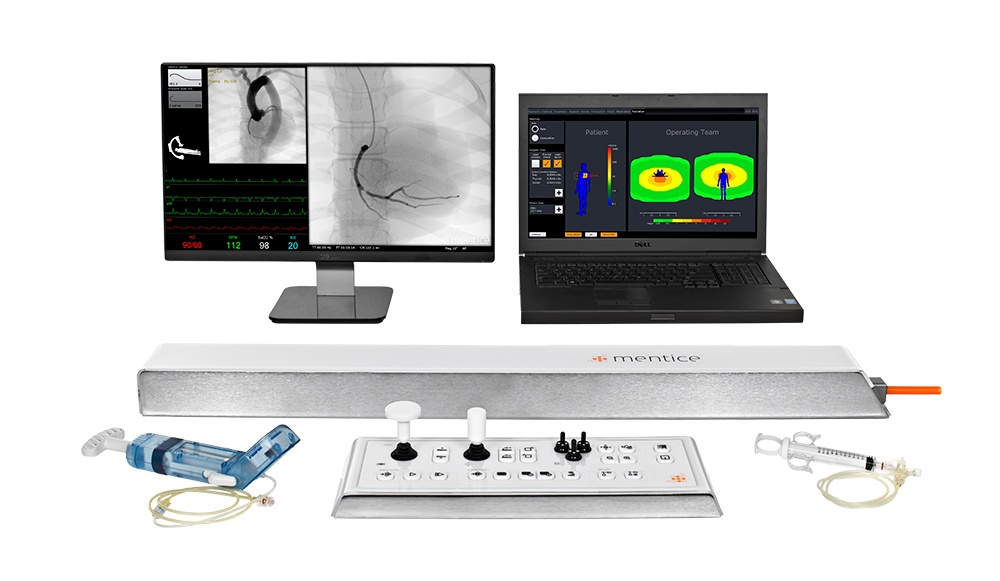

Components

  • VIST® G7 or G7+ device
  • Laptop with touch screen
  • 21.5” full HD Monitor
  • VIST® Control Box

Accessories

  • Foot pedal
  • Syringe
  • Indeflator (2 for VIST® G7+)
  • Stent release handle

Packaging

  • 1 flight case
  • 116 x 41 x33 cm | 27 kg
  • 46″ x 16″ x 13″ | 50 lbs

Setup

  • Power: 180W (110-240V~)
  • Recommended table size 150 x 60 cm | 60″ x 24″

Features

  • Patented bifurcation and dual wire
  • HapticRealism™ technology with advanced force control and measurement (up to 25N)
  • Automated particle elimination technology
  • Compatible with real mono/biplane foot pedals
    Easy to set-up
  • Automated calibration
    Mobile connection ready
    Compact and robust design
  • Supports real clinical devices – from 0.014” up to 24 F
  • Advanced VIST® Control Box for fluoroscopy, table, image store and collimation controls
  • Support for all Mentice software training modules
